Premium Single-use
Bronchoscopes

The Right Scope, for the Right
Patient, in the Right Situation

Olympus is an innovation leader in the pulmonary space.


The launch of Olympus premium single-use bronchoscope portfolio marks another milestone in advancing technology in respiratory care. It combines convenience and workflow efficiencies with increased utility in complex procedures, which may complement your facility’s bronchoscope mix. The new single-use lineup offers advantages in specific procedural settings and complies with the latest safety recommendations from the FDA to advance performance in a modern bronchoscopy suite.

Interested in the most comprehensive flexible
bronchoscope lineup for every clinical need?

Request a Demo

The Right Scope

Augmenting Patient Care

The Olympus premium single-use bronchoscope portfolio enables you to approach advanced bronchoscopy with capable single-use alternatives that can augment your approach to patient care. On-demand convenience along with premium features and a broad portfolio of bronchoscopes to navigate diagnostic and therapeutic bronchoscopy procedures using the right scope, for the right patient, in the right situation.

  • H-SteriScope™ Single-use Bronchoscope Extra
    Working Channel: 3.2mm; Insertion Tube: 6.2mm;
    Bending Section: U210°/D210°; Working Length: 600mm;
    Field of View: 110°+/-5%; Depth of View: 3-50mm;
    Illumination Method: LED
  • H-SteriScope™ Single-use Bronchoscope Large
    Working Channel: 2.8mm; Insertion Tube: 5.8mm;
    Bending Section: U210°/D210°; Working Length: 600mm;
    Field of View: 110°+/-5%; Depth of View: 3-50mm;
    Illumination Method: LED
  • H-SteriScope™ Single-use Bronchoscope Normal
    Working Channel: 2.2mm; Insertion Tube: 4.9mm;
    Bending Section: U210°/D210°; Working Length: 600mm;
    Field of View: 110°+/-5%; Depth of View: 3-50mm;
    Illumination Method: LED
  • H-SteriScope™ Single-use Bronchoscope Slim
    Working Channel: 1.2mm; Insertion Tube: 3.2mm;
    Bending Section: U210°/D210°; Working Length: 600mm;
    Field of View: 110°+/-5%; Depth of View: 3-50mm;
    Illumination Method: LED
  • H-SteriScope™ Single-use Bronchoscope Zero
    Working Channel: 0mm; Insertion Tube: 2.2mm;
    Bending Section: U210°/D210°; Working Length: 600mm;
    Field of View: 110°+/-5%; Depth of View: 3-50mm;
    Illumination Method: LED

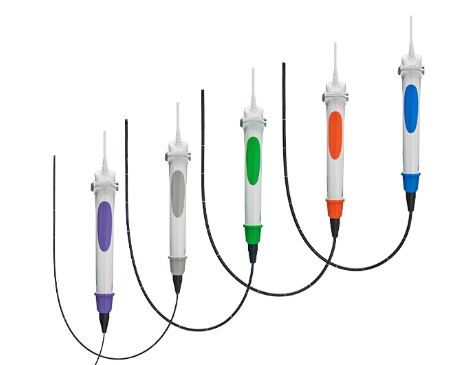

Utility and Variety for Everyday Use

The H-SteriScope™ portfolio includes five single-use bronchoscopes to provide the necessary variety and convenience in bronchoscope choice that is required to meet nowadays needs in respiratory care. The H-SteriscopesTM are designed for everyday pulmonary procedures in the bronchoscopy suite, the OR, ICU or ER.

  • SPiN Vision™ Single-use Bronchoscope 4.0mm
    Working Channel: 2.0mm; Insertion Tube: 4.0mm;
    Bending Section: U210°/D210°; Working Length: 735mm;
    Field of View: 110°+/-5%; Depth of View: 3-100mm;
    Illumination Method: LED
  • SPiN Vision™ Single-use Bronchoscope 6.0mm
    Working Channel: 2.8mm; Insertion Tube: 5.8mm;
    Bending Section: U210°/D210°; Working Length: 600mm;
    Field of View: 110°+/-5%; Depth of View: 3-50mm;
    Illumination Method: LED
  • Specialty Lock
    The SPIN Vision™ scope allows the scope angulation lever to be locked into place. This may be helpful in accessing the target site and sampling lesions as well as reducing operator fatigue.


Performance for Advanced Procedures

The specialty single-use SPiN Vision™ portfolio offers two bronchoscope models that are suitable for peripheral bronchoscopy and advanced diagnostic and therapeutic procedures where the locking thumb lever may provide additional stability and precision.

Why Olympus Single-use Bronchoscopes?

Enhancing Performance with Premium Features

All Olympus premium single-use bronchoscopes offer the following premium features.

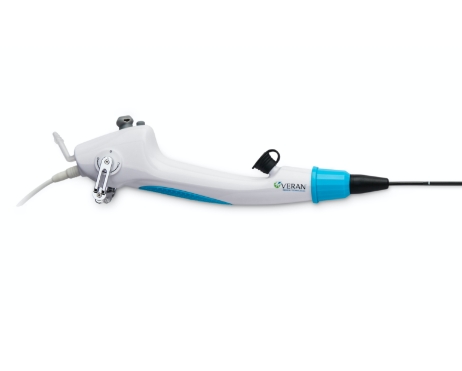

Versatility

Versatility

The single-use bronchoscopes can be used in a wide array of diagnostic and therapeutic applications. They provide the portability to perform procedures confidently anywhere, anytime.

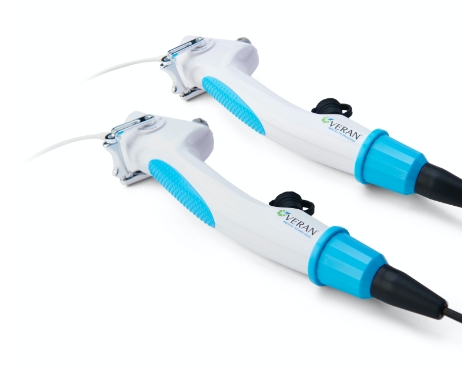

Convenience

The single-use bronchoscopes are easy-to-use devices. The sterile bronchoscopes provide portability and confidence to perform procedures wherever they are needed.

Convenience

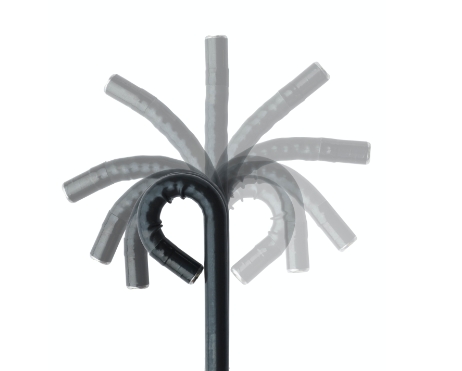

Maneuverability

Maneuverability

The wide angulation range of 210° up and down can be maintained even when an endoscopic device is inserted, making it easy to access targets within the tracheobronchial tree.

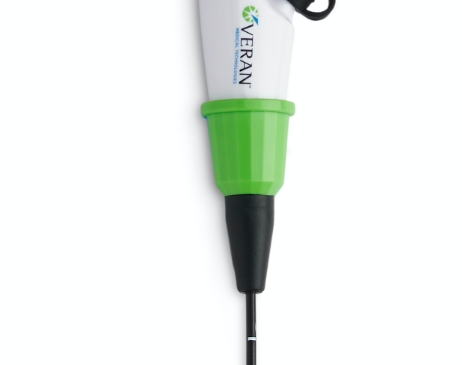

Control

An insertion tube rotation of up to 90° left and right may provide additional operator control and supports easy insertion and positioning of endoscopic devices.

Control

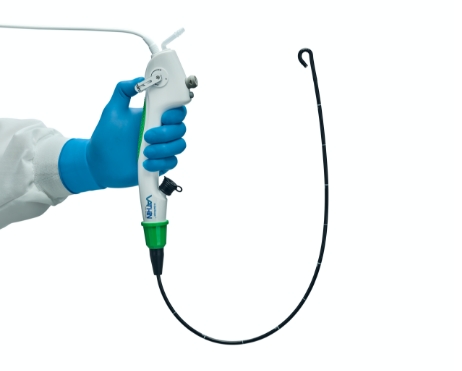

Efficiency

Efficiency

The diversity of the single-use lineup may help facilities optimize their efficiency by maximizing workflow and productivity.

Variety

The portfolio offers a wide range of best-in-class, single-use diagnostic and therapeutic bronchoscopes to fulfill a variety of clinical needs.

Variety

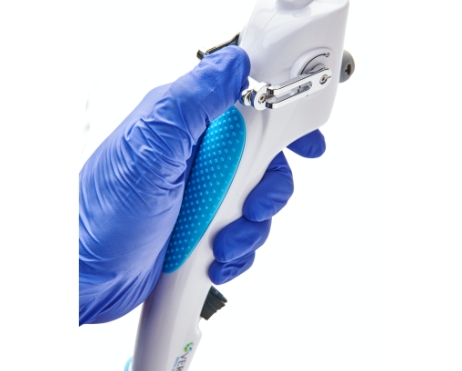

Lock
UNIQUE SPIN VISION FEATURE

Specialty Lock

The SPIN Vision™ scope allows the scope angulation lever to be locked into place. This may be helpful in accessing the target site and sampling lesions as well as reducing operator fatigue.

The Right Patient

Best-in-class Solutions for Optimal Patient Care

Olympus has always been committed to patient care and safety, and lowering patient risk is of the utmost importance. We are invested in evolving our bronchoscope technology to ensure that you can deliver optimal respiratory care to your patients. Our premium single-use bronchoscopes allow you to choose from a wide variety of conventional and single-use flexible bronchoscopes for diagnosis and treatment while mitigating the risks associated with cross-contamination and subsequent infection.

Olympus recognizes the importance of the FDA’s recommendation to use a single-use bronchoscope in situations where there is increased risk of spreading infection or when there is no support for immediate reprocessing of a conventional bronchoscope. We stand prepared to help you navigate your equipment decisions.

The Right Situation

A Comprehensive Flexible Bronchoscope
Lineup for Every Clinical Need

Olympus’ full line of reusable and single-use bronchoscopes is a comprehensive bronchoscopy portfolio. The Olympus Hybrid Bronchoscopy approach—reusable bronchoscopes, single-use bronchoscopes and Olympus Service—is a full-circle partnership offering designed to meet your facility’s clinical, economic and workflow needs.

Emergency Room
Emergency
Room
Bronchoscopy Suite
Bronchoscopy
Suite
Operating Room
Operating
Room
Intensive Care Unit
Intensive
Care Unit

By creating efficiency in the pre- and post-procedure workflow, augmenting bronchoscopy with greater flexibility, and supporting cost management, hospitals adopting single-use bronchoscopes will better meet clinical needs in every situation.


Bronchoscope Portfolio


Single-use
H-SteriScope™
Zero - BCV1-02
Channel Size: 0.0 mm
Rotary Function

Rotary Function

Conventional
BF-XP190
BF-XP190
Channel Size: 1.2 mm
Rotary Function

Rotary Function

Single-use
H-SteriScope™
Slim - BCV1-C2
Channel Size: 1.2 mm
Rotary Function

Rotary Function

2.2
3.1
3.2
Distal Outer Diameter (mm)
Conventional
BF-MP190F
Channel Size: 1.7 mm

Rotary Function

Rotary Function

Single-use
SPiN Vision™
INS-7100
Channel Size: 2.0 mm
Rotary Function

Rotary Function

Conventional
BF-P190
Channel Size: 2.0 mm

Rotary Function

Rotary Function

3.0
4.0
4.2
Distal Outer Diameter (mm)
Conventional
BF-Q190
Channel Size: 2.0 mm

Rotary Function

Rotary Function

Single-use
H-SteriScope™
Normal - BCV1-M2
Channel Size: 2.2 mm
Rotary Function

Rotary Function

Conventional
BF-H190
Channel Size: 2.0 mm
Rotary Function

Rotary Function

High Definition

High Definition

4.8
4.9
5.5
Distal Outer Diameter (mm)
Single-use
H-SteriScope™
Large - BCV1-S2
Channel Size: 2.8 mm
Rotary Function

Rotary Function

Single-use
SPiN Vision™
INS-7130
Channel Size: 3.0 mm
Rotary Function

Rotary Function

Single-use
H-SteriScope™
Extra - BCV1-W2
Channel Size 3.2 mm
Rotary Function

Rotary Function

Conventional
BF-1TH190
Channel Size: 2.8 mm
Rotary Function

Rotary Function

High Definition

High Definition

Conventional
BF-XT190
Channel Size: 3.2 mm

Rotary Function

Rotary Function

5.8
6.0
6.2
6.3
Distal Outer Diameter (mm)
Conventional
BF-UC190F
Channel Size: 2.2 mm
Conventional
BF-UC180F
Channel Size: 2.2 mm
6.6
6.9
Distal Outer Diameter (mm)

Specifications


H-SteriScopes™ - Utility and Variety for Basic and Advanced Procedures SPiN Vision™ Bronchoscopes - Performance for Specialty Procedures

Request a Demo of the Latest Premium
Single-use Bronchoscope Solutions


SteriScope™ is a trademark of Hunan Vathin Medical Instruments Co., Ltd.

SPiN Vision™ is distributed by Veran Medical Technologies, Inc., an Olympus Group company.

SPiN Thoracic Navigation System® is distributed by Veran Medical Technologies, Inc., an Olympus Group company.

Complications from bronchoscopy are rare and most often minor, but if they occur, may include breathing difficulty, vocal cord spasm, hoarseness, slight fever, vomiting, dizziness, bronchial spasm, infection, low blood oxygen, bleeding from biopsied site, or an allergic reaction to medications. Only rarely do patients experience other more serious complications (for example, collapsed lung, respiratory failure, heart attack and/or cardiac arrhythmia).
