Advancing
the Art of...

Endoscopy, Bronchoscopy AND Surgery

Designed as a universal imaging platform for endoscopic
procedures across multiple healthcare specialties,
our latest solution is intended to help improve clinical
outcomes for Endoscopy, Bronchoscopy and Surgery.

The new EVIS EXERA III platform is setting new
standards for technologies focusing on:

  • — Advancing Visualization
  • — Advancing Control
  • — Advancing Workflow


Gastroscopes

The ultimate in image quality for upper GI endoscopy.
O.D. Distal/Insertion – 9.9/9.9
CH Size – 2.8
Field of view (near) – 140 degrees
Field of view (normal) – 140 degrees
Dual focus
Water jet
Significantly slimmer design with amazing HDTV clarity.
O.D. Distal/Insertion – 9.2/9.2
CH Size – 2.8
Field of view – 140 degrees
Water jet


Colonoscopes

The ultimate in image quality and handling for colonoscopy.
O.D. Distal/Insertion – 13.2/12.8
CH Size – 3.7
Field of view (near) – 160 degrees
Field of view (normal) – 170 degrees
Dual focus
Water jet
RIT
ScopeGuide
Markedly improved visibility and handling in a slim design.
O.D. Distal/Insertion – 11.7/11.5
CH Size – 3.2
Field of view – 170 degrees
Water jet
RIT
A new class of ultra-slim colonoscopes featuring HDTV image quality.
O.D. Distal/Insertion – 9.7/9.5
CH Size – 3.2
Field of view – 140 degrees


video processor and light source

Video processing to power advanced endoscopy.
One-touch access to HDTV and NBI.

Visualization

Advancing Visualization

with technologies for better diagnosis and effective treatment.

Resolving Power

EVIS EXERA III provides superior image quality to commercially available products, which enables observation with greater detail.

Provides superior image quality.



NBI

Olympus developed narrow band imaging technology to enhance observation of mucosal tissue. Now an improved version gives twice the viewable distance and is significantly brighter.

Significantly brighter.

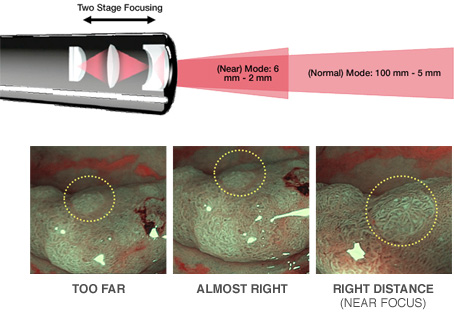

Dual Focus
(Available in HQ Scopes)

Like a magnifying glass, Dual Focus provides the ability to closely examine tissue as needed throughout a procedure.

Closely examine tissue.

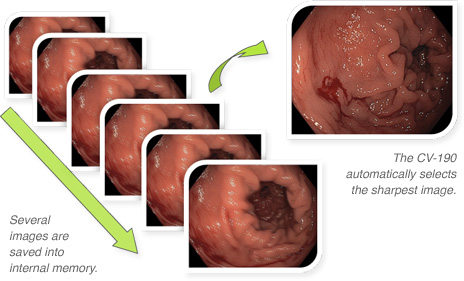

Pre-Freeze

Capture a crisp, clear image the first time. EVIS EXERA III dramatically increases the sharpness and clarity of still-image captures, due to a new still-image capture algorithm.

Captures the sharpest image.

Control

Advancing Control

to provide new value to physicians and staff.

Responsive Insertion Technology

RIT consists of three technologies that work together to improve ease of insertion and operator control, which may help to minimize patient discomfort and enhance procedural efficiency.

PASSIVE BENDING

The new insertion section includes a soft passive bending section that better follows the passage through acute turns.

HIGH FORCE TRANSMISSION

High Force Transmission enables a 1:1 transfer of pushing & rotating forces to the distal end of the colonoscope, improving ergonomics and scope responsiveness.

VARIABLE STIFFNESS

Variable stiffness allows the flexibility a scope to be changed incrementally by manipulating a flexibility adjustment ring.

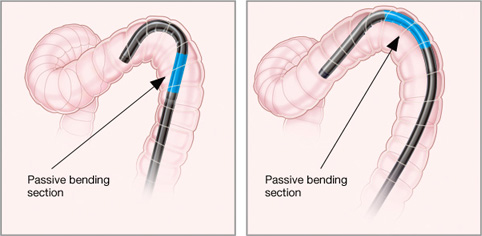

Passive Bending

This technology allows for smooth passage through acute flexures by allowing the distal tip of the scope to "deflect" and conform to the natural anatomy. Conventional scopes create a "candy cane" effect causing distended anatomy, patient discomfort and procedural difficulty.

Allows for smooth passage through acute flexures.

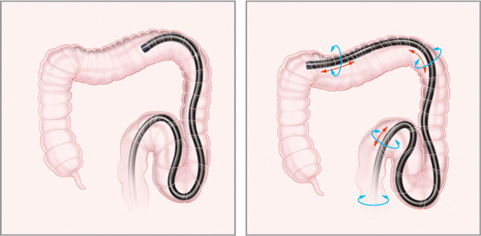

High Force Transmission

High Force Transmission enables a 1:1 transfer of pushing & rotating forces to the distal end of the colonoscope, improving ergonomics and scope responsiveness.

Improves ergonomics and scope responsiveness.

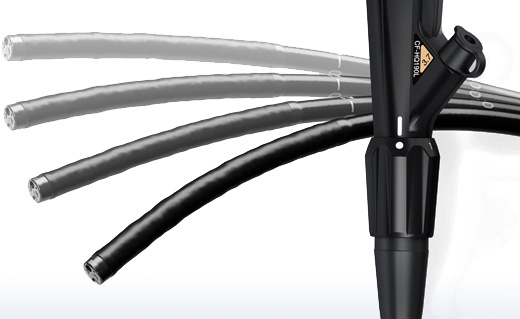

Variable Stiffness

Variable stiffness allows the flexibility of a scope to be changed incrementally by manipulating a flexibility adjustment ring.

Adjust the flexibility of a scope.



ScopeGuide

ScopeGuide is a GPS for the colon designed to improve efficiency and patient comfort, even during difficult procedures. ScopeGuide is integrated into Evis Exera III with the CF-HQ190L colonoscope.

Workflow

Advancing Workflow

by delivering flexible, integrated solutions.

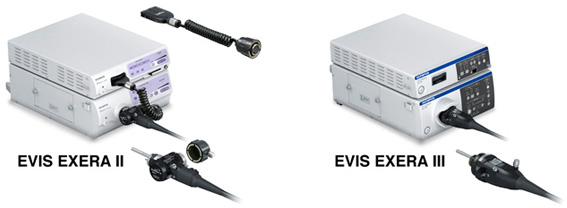

One-Touch Connector

Create reprocessing and set-up efficiencies with the one-touch connector.

Reprocessing and set-up efficiencies.

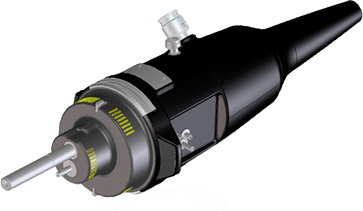

One-Touch Connector

  • Fully waterproof and submersible
  • No reprocessing cap
  • Reduce repair costs due to fluid invasion

Fully waterproof.

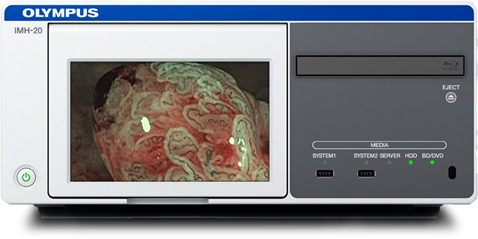

Image Management

The IMH-20 BluRay recorder provides seamless recording, management and editing for vivid HD images and videos.

Seamless recording, management and editing.

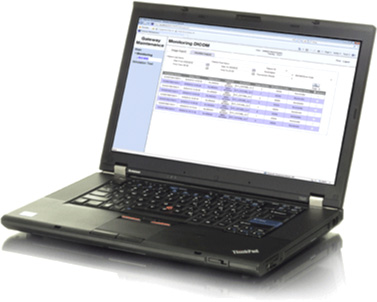

dicom communication module

Simple, cost-effective solution for endoscopy image management and seamless integration over medical networks.
Learn more.

Simple, cost effective, and compatible.
