Are you ready for
Big Screen Surgery?
  • Ultra High Definition
    4K - Four Times the Resolution of Full HD
    • Provides four times more information than conventional Full HD imaging systems
    • Visera 4K UHD supports both 4K UHD (3840 × 2160) and Full 4K (4096 × 2160) resolution
  • Ultra High Definition
    ED Glass Lenses – Razor-Sharp Images
    • Optimized for high-resolution imaging
    • Decreased chromatic aberration
    • High contrast at high spatial frequencies
  • Ultra High Definition
    Exmor R® Sensor – Clearer Images in Every Condition
    • Twice as sensitive as conventional sensors
    • Higher image quality in low light conditions
  • Ultra High Definition
    One-Touch Auto Focus – Fast and Accurate
    • Achieve the optimal view
    • Immediate focus of the image center
    • Simplified usability during surgery
  • Ultra High Definition
    OptiContrast LCD Panel – Ideal Contrasts
    • Reduced reflections
    • Unclouded images during surgery


4K HD
Wider Color Gamut
More Details, More Difference

The VISERA 4K UHD generates a wider color gamut by adopting the 4K color format (BT2020).
This enables rich color reproducibility and provides suitable colors for each clinical discipline.

  • Allows surgeons to observe fine patterns and structures in high precision
  • Much more subtle differences in reds and yellows than conventional HDTV
Magnified Visualization
Get Closer
  • Panoramic view for the whole OR team
with optimal viewing distance and wide viewing angle
  • Structure enhancement processing based on image enhancement technology enables clearer recognition of human tissue and instruments in the body cavity
  • Allows surgeons to observe fine patterns and structures of tissues in the body in high precision even when enlarged
  • Equivalent to Full HD resolution even at 2.0x zoom
  • Electric zoom allows for the scope to be moved from the operating field in order to avoid mist and smoke and to reduce "sword-fighting" of hand instruments
Ultra High DEFINITION
4K

Enter your email address to receive 4K news and updates

  • Products

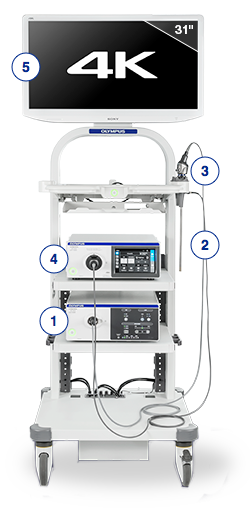

    VISERA 4K UHD System
    From the Light to the Monitor
    VISERA 4K UHD - Imaging Chain
    All of the components work together seamlessly to generate improved visibility. Each component, from the light to the monitor, is built specifically for the 4K UHD/Full 4K.

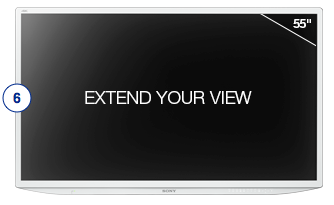

    4K 1-4 6) Extend Your View
  • Products

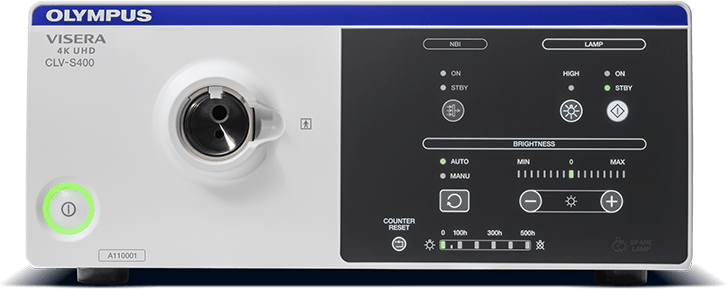

    CLV-S400 – VISERA 4K UHD Xenon Light Source

    Custom Light Source for the 4K System

    • 300 W xenon lamp
    • Automatic light intensity
    • NBI compatibility

  • Products
    ULTRA Telescope

    ED Glass Lenses – Razor-Sharp Images

    • Optimized for high-resolution imaging
    • Decreased chromatic aberration
    • High contrast at high spatial frequencies
    • Comparable working length for 5.4 mm and 10 mm

    Distortion-Free Images (5.4 mm telescope)

    • Clear images even at the edges
    • No barrel or pincushion distortion

    Wide Field of View

    • Visual field increased by 20% compared to conventional HD endoscopes*

    Compatibility

    • Mechanical compatibility to current generations of camera heads and light guide cables by Olympus and other manufacturers that comply with DIN58105

    Full Autoclavability

    • Reduced waste due to full reusability of the telescopes

    Good Illumination Even at the Edges

    • The ULTRA telescopes have a homogeneous light distribution in the peripheral region (both 5.4 mm and 10 mm)

    *5.4mm ULTRA telescope compared to endoscope with 70° field of view and 10mm ULTRA telescope compared to endoscope with 75° field of view.

  • Products
    Camera Head

    Sharper Images with Less Noise with the 4K Exmor R® CMOS Sensor and Optical-Fiber Transmission

    • High sensitivity compared to normal CMOS sensor
    • Less noise (dual noise-reduction function)
    • No delay (4K high-speed transmission)

    Optimal View (Fast and Accurate)

    • One-Touch Auto Focus function always enables surgeons to see the fine details of tissue/texture
    • Electronic zoom allows surgeons to observe the fine patterns and structures of tissues in the body – in high precision even when enlarged

    Improved Operability (Ergonomic Design)

    • Small, compact camera head
    • New coupler design
  • Products

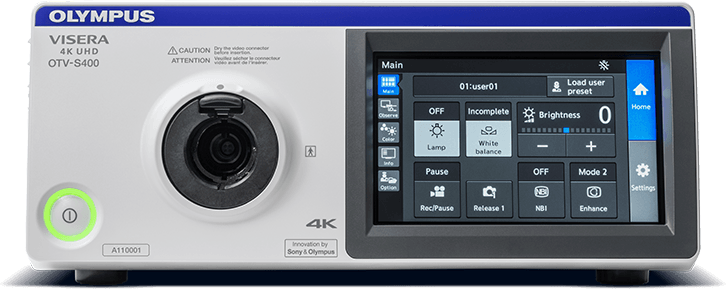

    OTV-S400 – VISERA 4K UHD Camera Control Unit

    4K High-Quality Image Processing

    • Wide color gamut
    • 16-axial color-phase adjustment (more precise color
      setting based on surgeon’s preference)
    • Improved AE (automatic exposure) function

    Improved Operability

    • Touch panel enables adjustments during procedure
    • Easy registrations and loading of user presets
  • Products

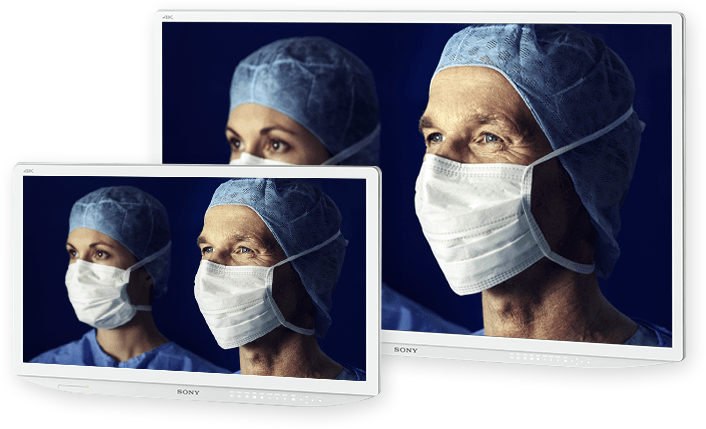

    LMD-X550S / LMD-X310S – LCD Monitor

    Medical Monitor

    • Provides a higher contrast with less color blurring
      with the OptiContrast™ panel technology
    • Supports 4K resolution (4096 × 2160 / 3840 × 2160)
      and a wider color gamut
    • Thinner and lighter compact design
